Shown with optional Step Nut in place.
Shown with Step Nut & Bevel Washer options.
Basic bolt tester shown without options.

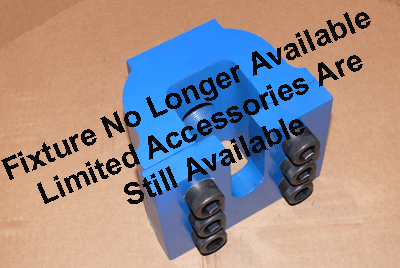

Fixture No Longer Available.
Optional acessories are still available and sold separately.
See below for optional acessories sold separately: 6° Bevel Washers10° Bevel WashersFlat WashersHeat Treated All Thread.
For in-shop bolt testing. Sizes 1/4" to 1-1/4". Other sizes available.
200,000 KSI. Heat treated to 40RC.
8" or 16" lengths.

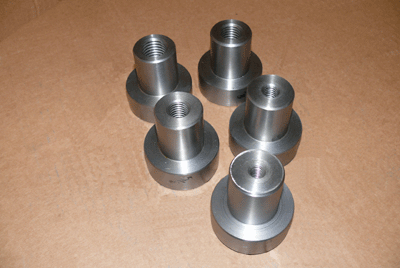

For in-shop bolt testing. Sizes 1/4" to 7/8". In 1/8" increments.
Heat treated to 40RC.

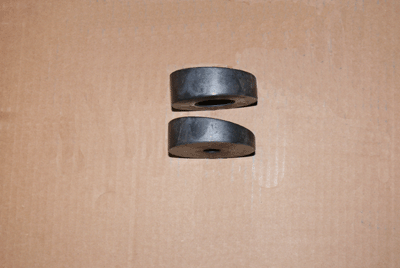

For in-shop bolt testing. Sizes 1/4" to 1" have a 10 degree bevel, sizes over 1" have a 6 degree bevel.
Meets ASTM F606. Heat treated to 40RC.

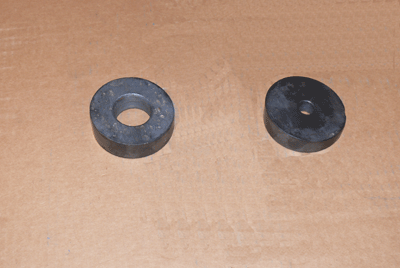

For in-shop bolt testing. Sizes 1/4" to 1-1/4".
